A New Ultrafast Control Scheme of Ferromagnet for Energy-Efficient Data Storage

The digital data generated around the world every year is now counted in zettabytes, or trillions of billions of bytes - equivalent to delivering data for hundreds of millions of books every second. The amount of data generated continues to grow. If existing technologies remained constant, all the current global electricity consumption would be devoted to data storage by 2040.

Researchers at the Université de Lorraine in France and Tohoku University reported on an innovative technology that leads to a drastic reduction in energy for data storage.

The established technology utilizes an ultrafast laser pulse whose duration is as short as 30 femto seconds - equal to 0.0000000000000003 seconds. The laser pulse is applied to a heterostructure consisting of ferrimagnetic GdFeCo, nonmagnetic Cu and ferromagnetic Co/Pt layers.

"Previous research, conducted by a subset of the current research group, observed magnetic switching of the ferromagnetic layer after the ferrimagnetic layer had been switched." This time, the researchers uncovered the mechanism accounting for this peculiar phenomena and found that a flow of electron spin, referred to as a spin current, accompanying the switching of ferrimagnetic GeFeCo plays a crucial role in inducing the switching of ferromagnetic Co/Pt (Fig. 1).

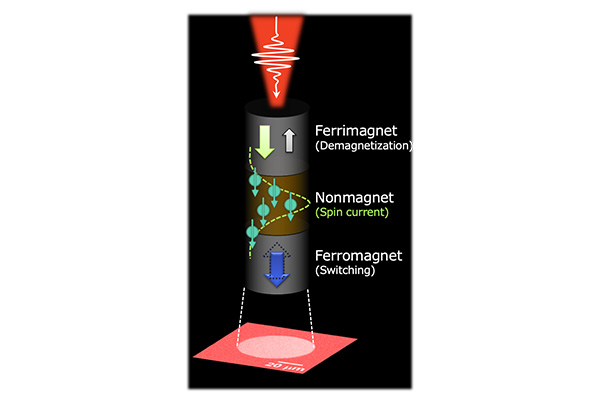

(Fig. 1) A schematic illustration of the demonstrated ultrafast and energy efficient switching of ferromagnet driven by a single femtosecond laser pulse. The laser pulse demagnetizes the ferrimagnetic layer and generates a spin current, which travels through the nonmagnet and finally induces the switching of the ferromagnet. The lower image shows an observed magneto-optical Kerr effect micrograph showing the switching of the ferromagnetic layer. Shunsuke Fukami and Stéphane Mangin

Based on this insight, they demonstrated a much faster and less energy consuming switching of the ferromagnet. This was driven by a single laser pulse without a switching of the ferrimagnetic layer. "This is very good news for future data-storage applications as this technology can provide an efficient scheme to write digital information to a magnetic medium, which is currently based on a magnetic-field-induced switching," says Shunsuke Fukami, co-author of the study.

The partnership between the Université de Lorraine and Tohoku University is driven, in large part, by the exchanges of graduate students and post-docs between the two universities. More than a dozen exchanges on both sides have already taken place for periods of several months. This partnership was supported by Presidents Hideo Ohno and Pierre Mutzenhardt, who signed a consortium agreement in 2019 during the World Materials Forum.

Publication Details:

Title: Energy Efficient Control of Ultrafast Spin Polarized Current to Induce Single Femtosecond Pulse Switching of a Ferromagnet
Authors: Quentin Remy, Junta Igarashi, Satoshi Iihama, Grégory Malinowski, Michel Hehn, Jon Gorchon, Julius Hohlfeld, Shunsuke Fukami, Hideo Ohno and Stéphane Mangin
Journal: Advanced Science
DOI: 10.1002/advs.202001996

Press release in Japanese


Shunsuke Fukami
