Researchers Develop Energy-Efficient Computer by Combining CMOS with Stochastic Nanomagnet

Researchers at Tohoku University and the University of California, Santa Barbara have unveiled a probabilistic computer prototype. Manufacturable with a near-future technology, the prototype combines a complementary metal-oxide semiconductor (CMOS) circuit with a limited number of stochastic nanomagnets, creating a heterogeneous probabilistic computer.

Developing computers capable of efficiently executing probabilistic algorithms frequently used in artificial intelligence and machine learning is a challenge scientists have long sought to overcome. The approach outlined in this work presents a promising and feasible solution to address this, with the researchers confirming that its superior computational performance and energy-efficiency surpass current CMOS technology.

The details of this breakthrough were published in the journal Nature Communications on March 27, 2024.

Recent artificial intelligence and machine learning have had a transformational impact on societies. In such technology, probabilistic algorithms are utilized to solve problems where uncertainty is inherent or where an exact solution is computationally infeasible. These operations follow specific instructions within CMOS circuits, but sometimes there exist inconsistencies between how software (instructions) and hardware (circuits) work together, leading to discrepancies in outcomes.

As the role of artificial intelligence and machine learning expands, there is a strong demand for a new computing paradigm that reconciles this mismatch, achieving greater sophistication while significantly reducing energy consumption.

In this study, graduate student Keito Kobayashi and Professor Shunsuke Fukami from Tohoku University, along with Dr. Kerem Camsari from the University of California, Santa Barbara, and their colleagues, developed a near-future heterogeneous version of a probabilistic computer tailored for executing probabilistic algorithms and facile manufacturing [Fig. 1b].

A schematic illustrating the difference in the current deterministic CMOS computer (a), near-future heterogeneous version of the probabilistic computer, and (c) the final form of the probabilistic computer fully based on the spintronics technology. The table on the right side represents the comparison between them in terms of the chip area, energy consumption, and manufacturability. ©Shunsuke Fukami and Kerem Camsari

"Our constructed prototype demonstrated that excellent computational performance can be achieved by driving pseudo random number generators in a deterministic CMOS circuit with physical random numbers generated by a limited number of stochastic nanomagnets," points out Fukami. "Specifically speaking, a limited number of probabilistic bits (p-bits) with a stochastic magnetic tunnel junction (s-MTJ), should be manufacturable with a near-future integration technology."

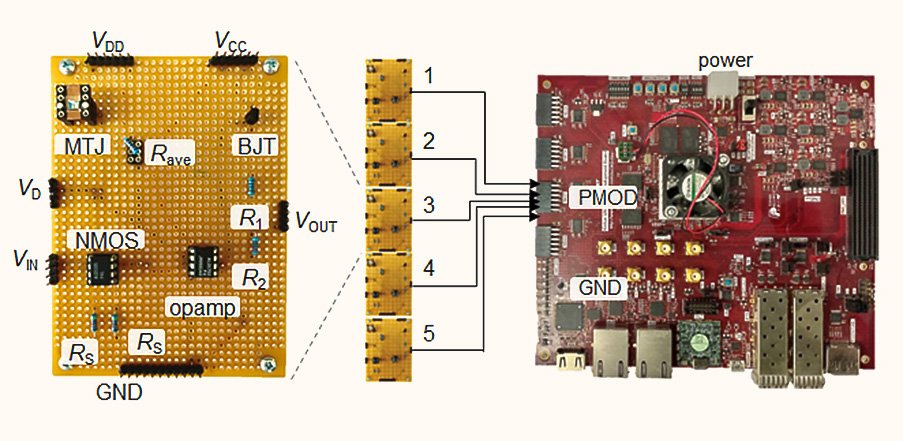

A photograph of the developed prototype. The system is designed such that the spintronic probabilistic bit comprising a stochastic magnetic tunnel junction (MTJ) [left] generates a physical random number that drives the pseudo random number generators programmed in the CMOS circuit, or the field-programmable gate array (FPGA) [right]. ©Shunsuke Fukami and Kerem Camsari

The researchers also clarified that the final form of the spintronics probabilistic computer, primarily composed of s-MTJs [Fig. 1c], will yield a four-order-of-magnitude reduction in area and a three-order-of-magnitude reduction in energy consumption compared to the current CMOS circuits when running probabilistic algorithms.

Ultimately, Fukami and his colleagues' prototype addresses the limitations of current deterministic CMOS circuits for artificial intelligence and machine learning. "We anticipate future research and development will advance, leading to the implementation in society of an innovative computing hardware that boasts exceptional computational performance and energy-saving capabilities," adds Fukami.

Publication Details:

Title: CMOS plus stochastic nanomagnets enabling heterogeneous computers for probabilistic inference and learning
Authors: Nihal Sanjay Singh, Keito Kobayashi,, Qixuan Cao, Kemal Selcuk, Tianrui Hu, Shaila Niazi, Navid Anjum Aadit, Shun Kanai, Hideo Ohno, Shunsuke Fukami & Kerem Y. Camsari
Journal: Nature Communications
DOI: 10.1038/s41467-024-46645-6
