Above and beyond megathrusts: Draining pore-fluids dampens tremors

Above and beyond megathrusts: Draining pore-fluids dampens tremors

While metamorphic reactions in the subducting slab liberate large amounts of fluids, low-frequency earthquakes (LFE) largely occur beneath impermeable unmetamorphosed overlying plate, and are rare beneath metamorphosed plate. Scientists at Tokyo Institute of Technology and Tohoku University suggest that undrained conditions are key factors in the generation of LFEs, whereas well-drained conditions reduce pore-fluid pressures at the megathrust and inhibit LFEs and associated tremors.

In the Nankai subduction zone, Japan, non-volcanic deep tremors occur down-dip of the megathrust seismogenic zone, and are observed to coincide temporally with short-term slow-slip events. As Low-Frequency Earthquakes (LFEs) coincide spatially with tremor activity, the locations of LFEs act as a proxy for tremor activity. There are two distinct gaps in LFE activity at the Kii Gap and Ise Gap (Fig. 1). Junichi Nakajima (Tokyo Institute of Technology) and Akira Hasegawa (Tohoku University) examined the seismic properties of Nankai to elucidate the factors controlling LFE generation.

Figure 1

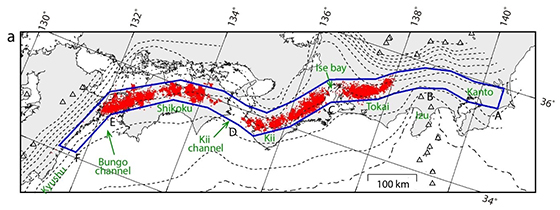

Figure 1. Map of low-frequency earthquake (LFE) activity above the megathrust in the Nankai subduction zone. LFE band is outlined in blue, while individual LFEs and active volcanoes are denoted by red dots and white triangles, respectively. Labels A-F mark locations of interest for LFE activity. Names of the regions discussed in the text are also shown. Broken lines denote depth contours of the upper surface of the Philippine Sea slab with an interval of 10 km.

The observed P-wave (dVp) and S-wave (dVs) velocities show the presence of low-velocity anomalies in the overlying plate at Kanto, Ise, Kii, and Kyushu, where there is limited or no LFE activity. LFEs do not occur on the megathrust where dVp and dVs are lower than approximately -4%, suggesting a systematic change in seismic velocities in the overlying plate between areas with and without LFE activity.

There is a spatial correlation between LFE locations and seismic velocity, attenuation, and anisotropy anomalies. One hypothesis that could explain the variation in seismic properties along the LFE band is along-strike variation in the degree of prograde metamorphism above the megathrust. The along-strike variations in seismic properties suggest that the overlying plate is less metamorphosed in areas with LFE activity, and is significantly metamorphosed in areas of limited or no LFE activity.

This anti-correlation between LFEs and metamorphism is probably caused by along-strike variation in hydrological conditions in the overlying plate. An impermeable overlying plate restricts fluids to the megathrust, whereas fluids escape from the megathrust, if the overlying plate is permeable.

Undrained conditions at the megathrust elevate pore-fluid pressures to near-lithostatic values, lower the shear strength of the megathrust sufficiently to facilitate LFEs, and result in a low degree of metamorphism in the overlying plate (Fig. 2).

Figure 2

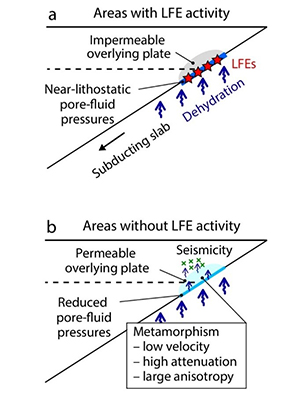

Figure 2. Schematic models for the development of pore-fluid pressure along the megathrust: (a) Model of enhanced pore-fluid pressure along the megathrust under undrained conditions; (b) Model of reduced pore-fluid pressure along the megathrust and enhanced metamorphism of the overlying plate under well-drained conditions. Low-frequency earthquakes (LFEs) are isolated pulse-like signals with a predominant frequency of ~2 Hz that are observed in continuous tremor signals.

The large number of crustal earthquakes in the Kii and Ise Gaps suggest that LFE activity and seismicity in the overlying plate are anti-correlated. Scientists said "A well-drained megathrust allows fluids to migrate into the overlying plate, inhibiting LFE activity at the megathrust, but facilitating shallow seismicity due to the decreased shear strength of crustal faults".

Publication Details:

Authors: Junichi Nakajima and Akira Hasegawa
Title: Tremor activity inhibited by well-drained conditions above a megathrust
Journal: Nature Communications
DOI: 10.1038/NCOMMS13863
